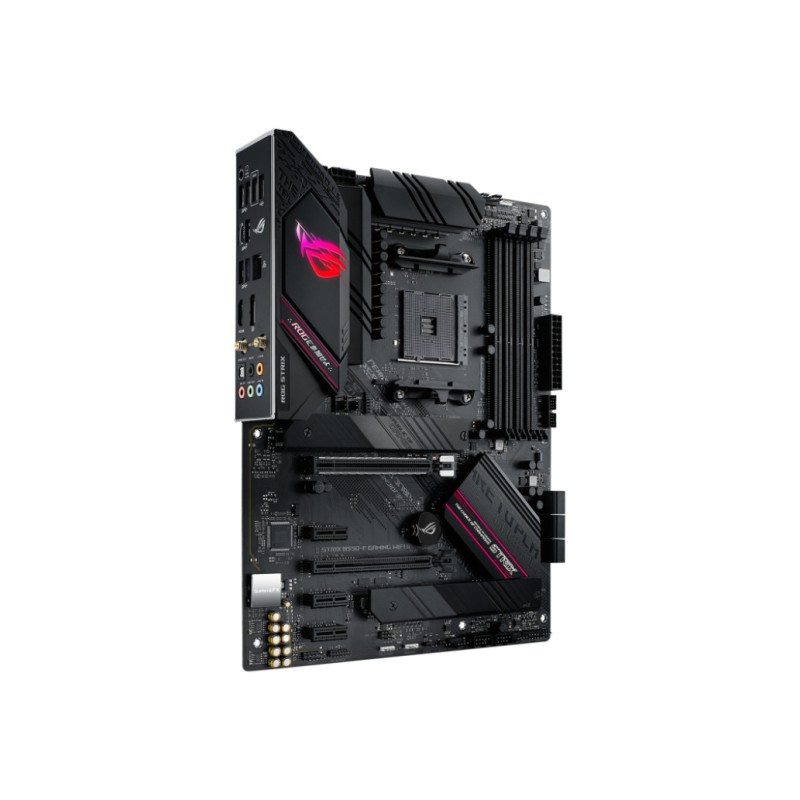

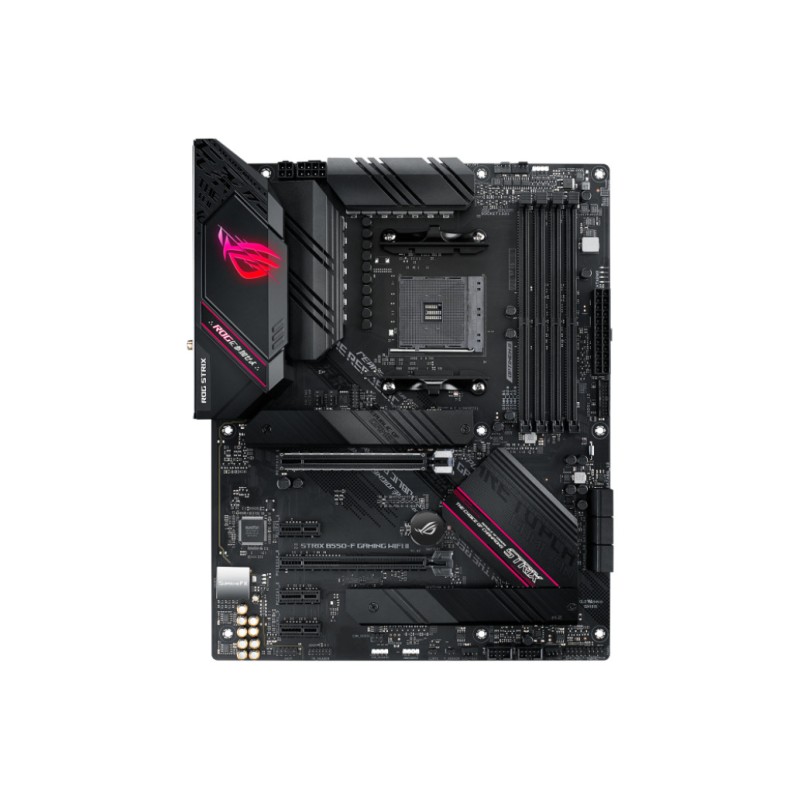

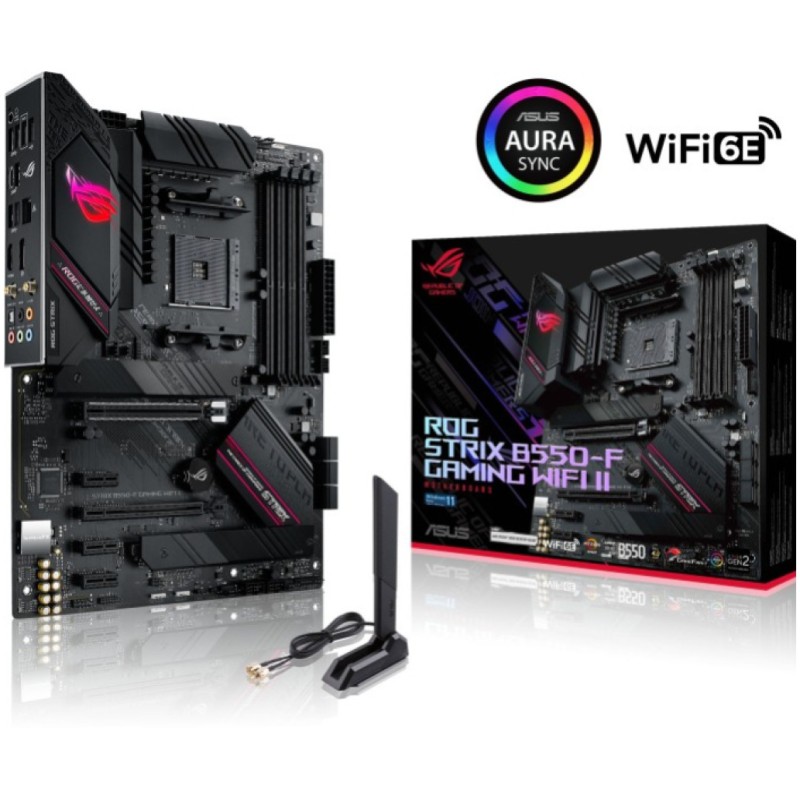

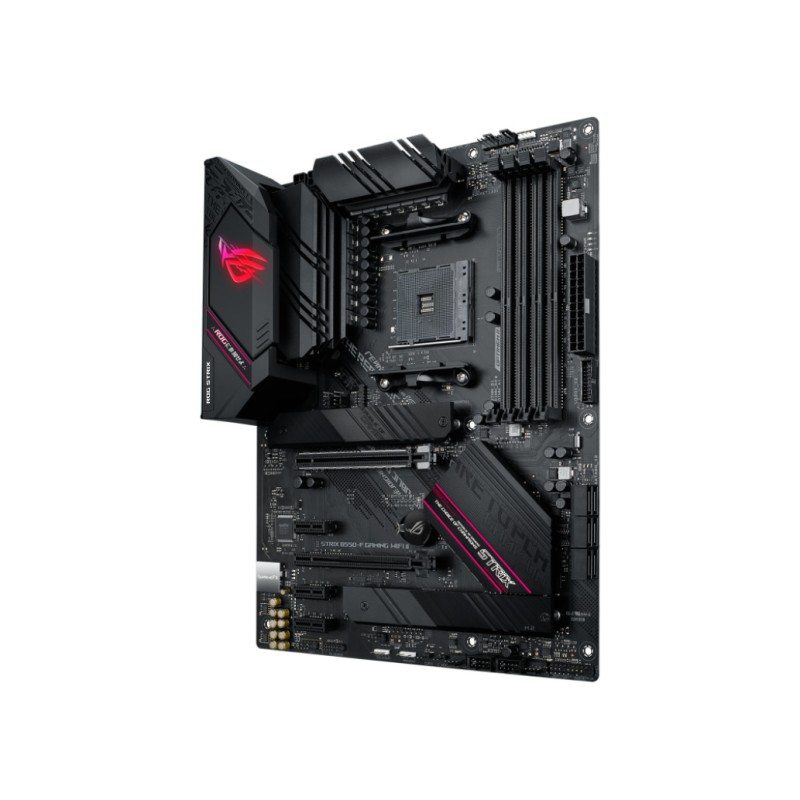

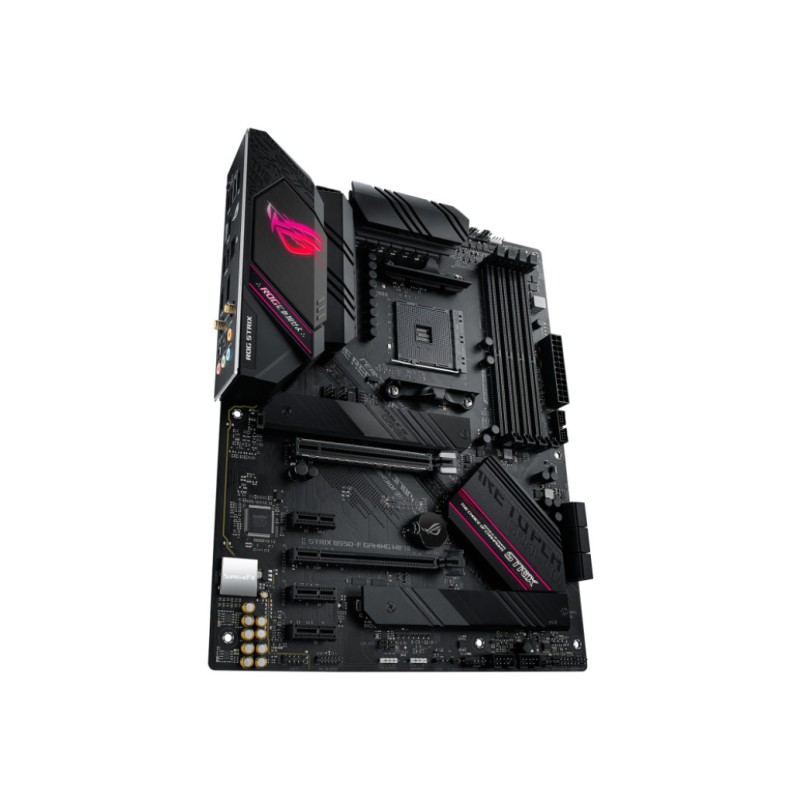

Osnovna plošča AM4 ASUS ROG STRIX B550-F GAMING WIFI II 90MB19V0-M0EAY0

Processor socket:
- Socket AM4
Maximum number of SMP processors:
- 1
Compatible processor series:
- 3rd Generation AMD Ryzen 3
- 3rd Generation AMD Ryzen 9
- 3rd Generation AMD Ryzen 5
- 3rd Generation AMD Ryzen 7
Processor manufacturer:
- AMD
Parallel processing technology support:
- Not supported
Motherboard form factor:
- ATX
Power source type:
- ATX
Harmonized System (HS) code:
- 84733020
Motherboard chipset:
- AMD B550
Audio output channels:
- 7.1 channels
Windows operating systems supported:
- Windows 10 Pro x64
- Windows 10 Pro
- Windows 10 IoT Enterprise
- Windows 10 Home x64
- Windows 10
- Windows 10 IOT Core
- Windows 10 Education x64
- Windows 10 Education
- Windows 10 Enterprise
- Windows 10 Enterprise x64
- Windows 10 x64
- Windows 10 Home
Motherboard chipset family:
- AMD
Cooling type:
- Active
Supported memory types:
- DDR4-SDRAM
Supported memory clock speeds:
- 4400
- 2133
- 3866
- 3200
- 2666
- 4133
- 4000
- 2400
- 2800
- 3466
- 4600
- 3600
- 3000
Memory slots type:
- DIMM
Maximum internal memory:
- 128 GB
Number of memory slots:
- 4
Width:
- 305 mm
Depth:
- 244 mm
Height:
- 68 mm
Wi-Fi standards:
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 5 (802.11ac)
- 802.11b
Top Wi-Fi standard:
- Wi-Fi 6 (802.11ax)
Wake-on-LAN ready:
- Y
Ethernet interface type:
- 2.5 Gigabit Ethernet
Ethernet LAN:
- Y
Bluetooth version:
- 5.2
Bluetooth:
- Y
Wi-Fi:
- Y
LAN controller:
- Intel I225-V
USB 2.0 connectors:
- 2
RGB LED pin header:
- Y
Number of EATX power connectors:
- 1
EPS power connector (8-pin):
- Y
Thunderbolt headers:
- 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
Peripheral (Molex) power connectors (4-pin):
- 1
Number of SATA III connectors:
- 6
CPU fan connector:
- Y
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 1
Number of chassis fan connectors:
- 3
12V power connector:
- Y
BIOS type:
- UEFI AMI
Cables included:
- SATA
Drivers included:
- Y
Supported storage drive types:
- HDD & SSD
Number of HDDs supported:
- 6
RAID levels:
- 1
- 10
- 0
Supported storage drive interfaces:
- M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 4
DisplayPorts quantity:
- 1
HDMI version:
- 2.1
DisplayPort version:
- 1.2
HDMI ports quantity:
- 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 1
Headphone outputs:
- 1
Ethernet LAN (RJ-45) ports:
- 1
Microphone in:
- Y
USB 2.0 ports quantity:
- 2
S/PDIF out port:
- Y
Number of M.2 (M) slots:
- 2
PCI Express x1 (Gen 3.x) slots:
- 3
PCI Express x16 (Gen 3.x) slots:
- 1
PCI Express x16 (Gen 4.x) slots:
- 1
Weight:
- 945 g
