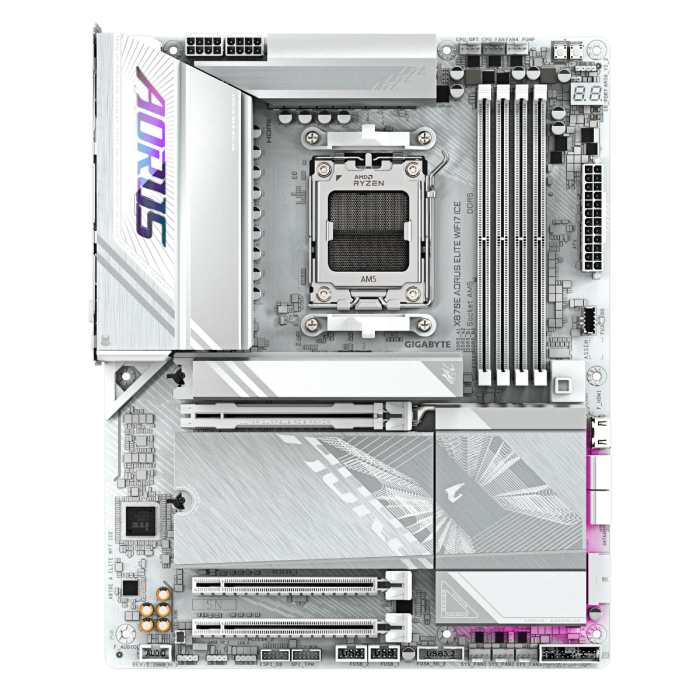

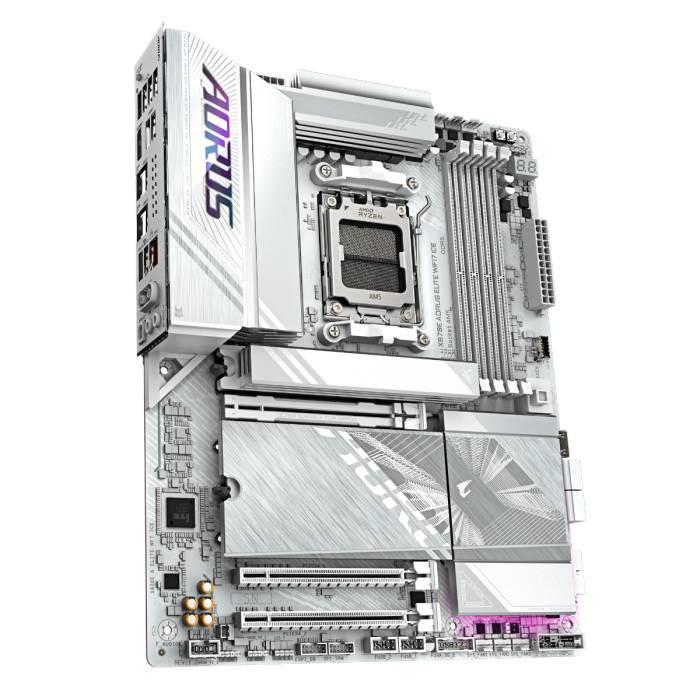

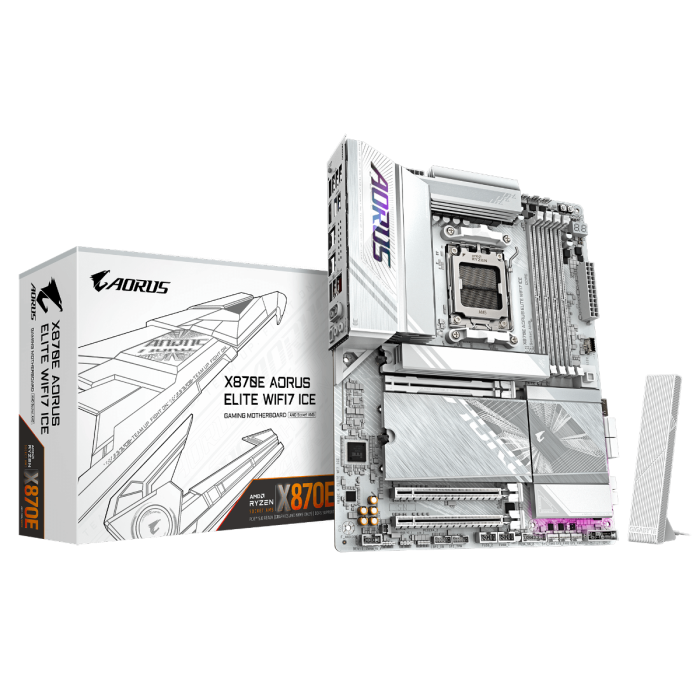

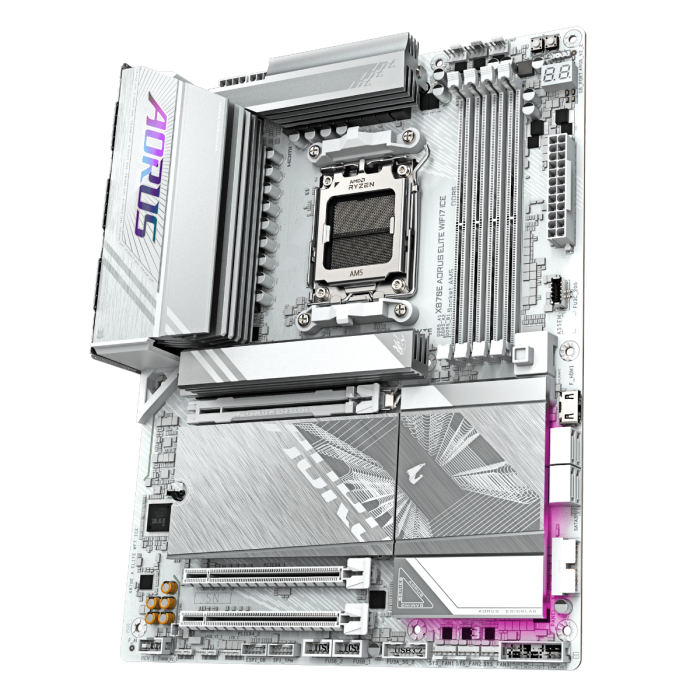

GIGABYTE X870E A ELITE WF7 ICE, DDR5, SATA3, USB4, DP, 2.5GbE, WiFi 7, AM5 ATX

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD Ryzen 7000/8000/9000 Series Desktop Processors
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD X870E
POMNILNIK:
4 x DIMM DDR5, Max. 256GB, DDR5  8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
GRAFIKA: preko APU, če le-ta podpira
RAID: DA (0,1,5,10) support for SATA / NVMe SSD storage devices
RAID 5 is only available on AMD Ryzen 9000 Series Processors
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAZŠIRITVENE REŽE:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
MREŽNA KARTICA: Realtek 2.5GbE LAN chip + Wi-Fi 7 RTL8922AE + BLUETOOTH 5.4
ZVOČNA KARTICA: Realtek ALC1220 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

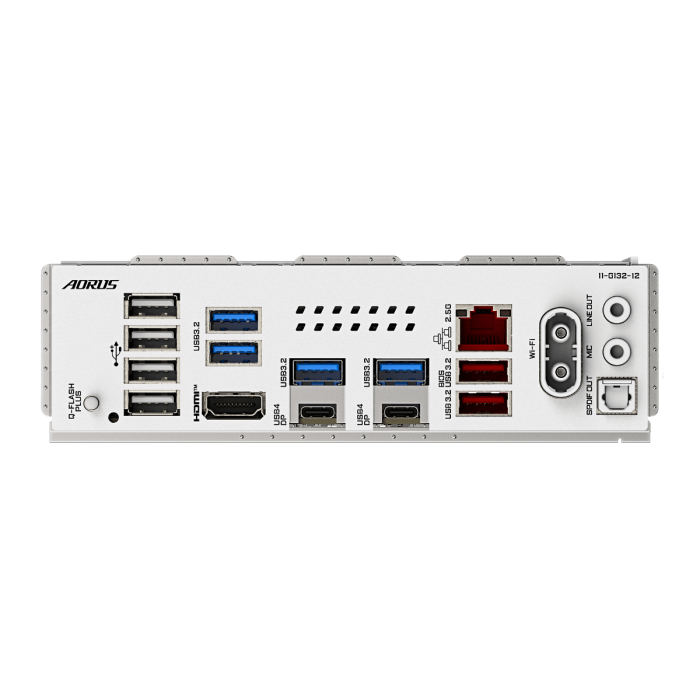

ZUNANJI PRIKLJUČKI:
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x HDMI port (Note)
2 x USB4 USB Type-C ports (DisplayPort (Note))
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
DODATNO:
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
