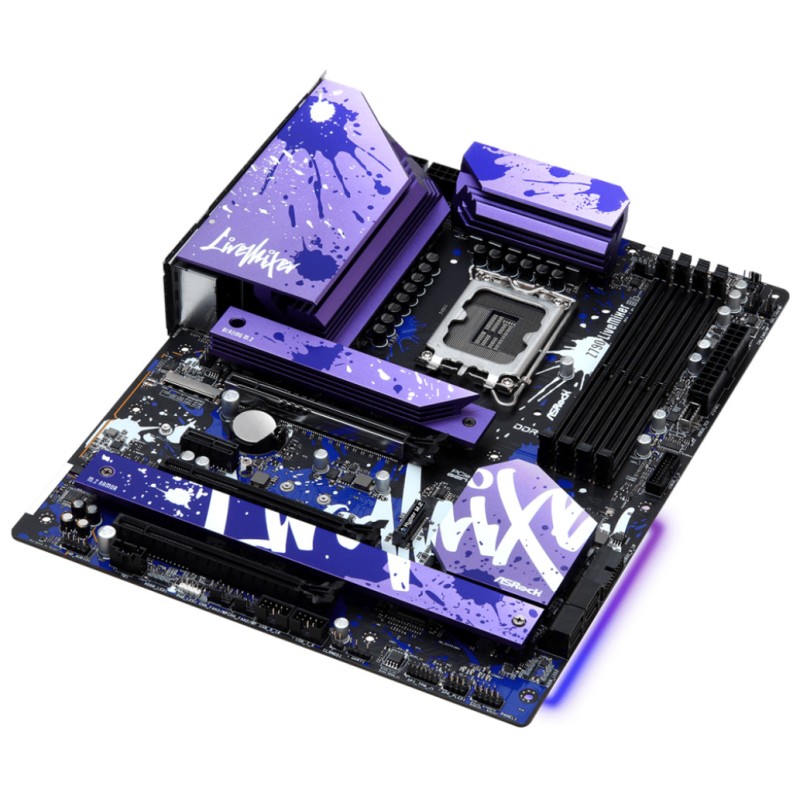

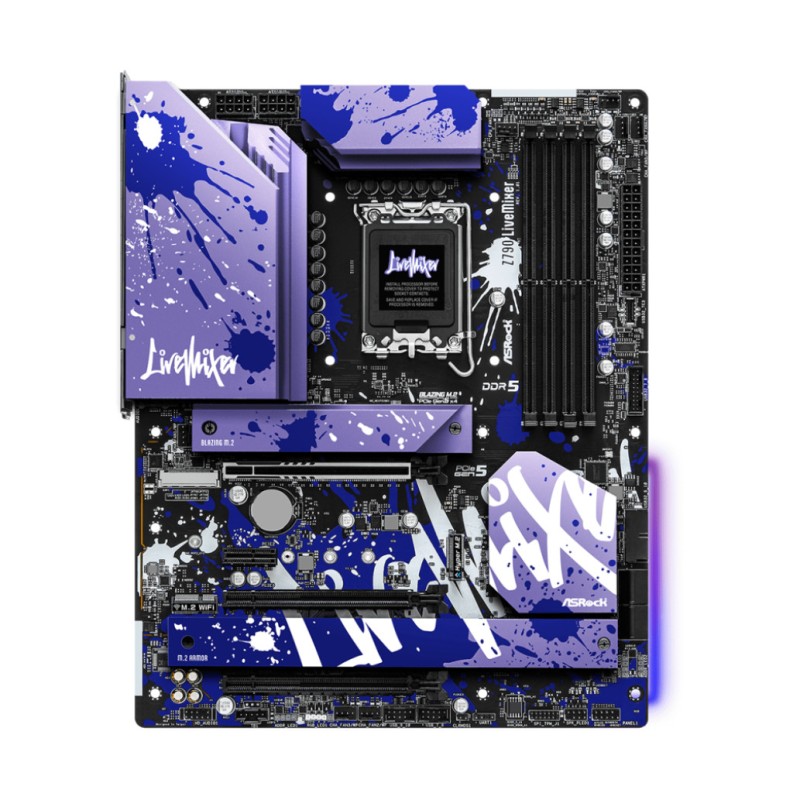

Osnovna plošča 1700 Asrock Z790 LiveMixer ATX 1xHDMI 2.1 1x eDP 1xDisplayPort 1.4

Maximum number of SMP processors:
- 1
Processor socket:
- LGA 1700
Compatible processor series:
- Intel Core i5
- Intel Core i7
- Intel Core i9
Processor manufacturer:
- Intel
Audio output channels:
- 7.1 channels
Motherboard chipset:
- Intel Z790
Audio chip:
- Realtek ALC897
Motherboard chipset family:
- Intel
Motherboard form factor:
- ATX
Windows operating systems supported:
- Windows 10 x64
- Windows 11 x64
Number of memory slots:
- 4
Memory slots type:
- DIMM
Supported memory types:
- DDR5-SDRAM
Maximum internal memory:
- 128 GB
Memory channels:
- Dual-channel
Depth:
- 244 mm
Width:
- 305 mm
Ethernet interface type:
- 2.5 Gigabit Ethernet
Ethernet LAN:
- Yes
LAN controller:
- Dragon RTL8125BG
Wi-Fi:
- No
RGB LED pin header:
- Yes
ATX Power connector (24-pin):
- Yes
Front panel audio connector:
- Yes
CPU fan connector:
- Yes
USB 2.0 connectors:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
Thunderbolt headers:
- 1
Number of SATA III connectors:
- 4
TPM connector:
- Yes
EPS power connector (8-pin):
- Yes
BIOS type:
- UEFI AMI
Supported storage drive interfaces:
- M.2, SATA III
RAID levels:
- 10
- 0
- 1
- 5
RAID support:
- Yes
Headphone outputs:
- 1
S/PDIF out port:
- Yes
Ethernet LAN (RJ-45) ports:
- 1
DisplayPort version:
- 1.4
USB 2.0 ports quantity:
- 6
Microphone in:
- Yes
HDMI ports quantity:
- 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 2
DisplayPorts quantity:
- 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 2
PCI Express x16 (Gen 4.x) slots:
- 2
PCI Express x16 (Gen 5.x) slots:
- 1
PCI Express x1 (Gen 3.x) slots:
- 1
Number of M.2 (M) slots:
- 1
