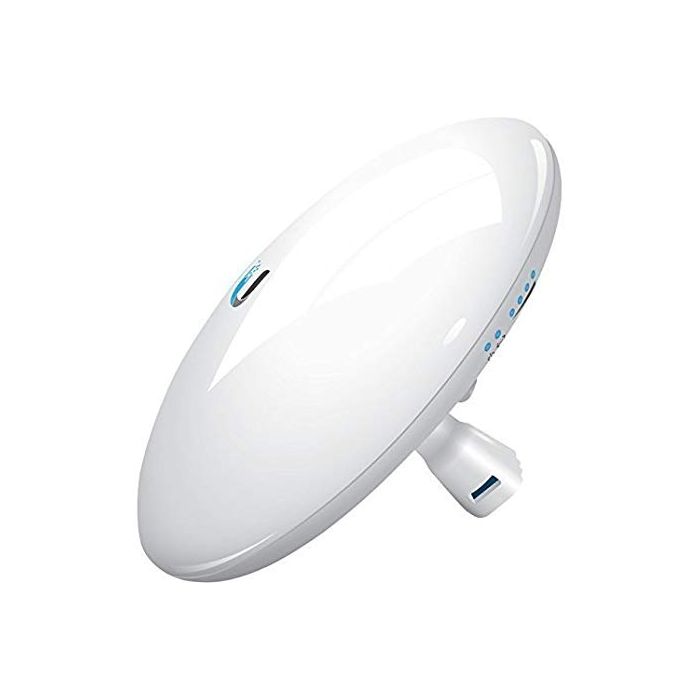

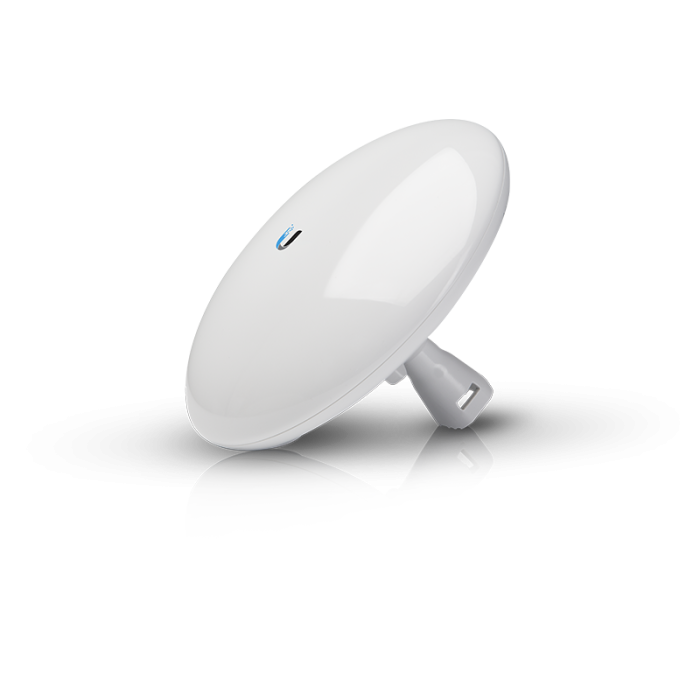

Ubiquiti NanoBeam ac NBE-5AC-GEN2
125,29€
Brez DDV: 102,70€
- Zaloga: 2
- Blagovna znamka: UBIQUITI
- Šifra: E0013200
- EAN: 810354026348
45,75€
Brez DDV:37,50€
229,30€
Brez DDV:187,95€
85,28€
Brez DDV:69,90€
134,96€
Brez DDV:110,62€
222,03€
Brez DDV:181,99€
Kompakten, 5 GHz WiFi most, pripravljen za UISP, z izboljšano zaščito pred prenapetostjo ter optimiziranim radiom in anteno.
Eleganten dizajn NanoBeam z lastniškim naborom čipov airMAX ac in namenskim upravljanjem Wi-Fi za enostavno podporo za mobilne aplikacije UISP in hitro nastavitev.
Ta airMAX ac CPE se vrti na krogličnem zglobu za prilagodljivost pri montaži in poravnavi.
Lastnosti:
- Nova antena
- Izboljšana zasnova radia
- Izboljšana prenapetostna zaščita
- Upravljanje WiFi Radio / mobilna aplikacija UNMS
- AirOS 8
Specifikacije:
NBE-5AC-Gen2 | |
Dimensions (Mount Included) | 189 x 189 x 125 mm |
(7.44 x 7.44 x 4.92") | |
Weight (Mount Included) | 530 g |
(1.17 lb) | |
Gain | 19 dBi |
Networking Interface | (2) 10/100/1000 Ethernet Port, Wi-Fi for Management |
Enclosure | Outdoor UV Stabilized Plastic |
Max. Power Consumption | 8.5W |
Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Wind Loading | 45.4 N @ 200 km/h |
(10.2 lbf @ 125 mph) | |
Wind Survivability | 200 km/h |
(125 mph) | |
Certifications | CE, FCC, IC |
Mounting | Pole-Mount (Kit Included) |
Wall-Mount (Not Included) | |
ESD/EMP Protection | ± 24kV Contact/Air |
Operating Temperature | -40 to 80° C (-40 to 176 F) |
Operating Humidity | 5 to 95% Noncondensing |
Salt Fog Test | IEC 68-2-11 (ASTM B117), |
Equivalent: MIL-STD-810 G Method 509.5 | |
Vibration Test | IEC 68-2-6 |
Temperature Shock Test | IEC 68-2-14 |
Processor Specs | Atheros MIPS 74Kc, 720 MHz |
Memory | 128 MB DDR2, 8 MB Flash |
LEDs | Power, Ethernet, (4) Signal Strength |
Signal Strenght LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
Max. VSWR | 1.5:1 |
Channel Sizes | |
PtP Mode | 10/20/30/40/50/60/80 MHz |
PtMP Mode | 10/20/30/40 MHz |
Polarization | Dual Linear |
RoHS Compliance | Yes |
UV Test | IEC 68-2-5 at 40° C (104° F), |
Equivalent: ETS 300 019-1-4 | |
Wind-Driven Rain Test | ETS 300 019-1-4, |
Equivalent: MIL-STD-810 G Method 506.5 | |
Operating Frequency MHz | |
Worldwide | 5150-5875 |
USA | |
U-NII-1 | 5150-5250 |
U-NII-2A | 5250-5350 |
U-NII-2C | 5240-5725 |
U-NII-3 | 5725-5850 |
Management Radio (MHz) | |
Worldwide | 2412 - 2472 |
USA | 2412 - 2462 |
Lastnosti | |
Model | NBE-5AC-GEN2 |
Garancija | 12 mesecev |
GSPR data | |
Proizvajalec | Ubiquiti Networks, Inc. |
Naslov | Plzenska 345/5 |
Pošta | 150 00 |
Država | CZ |
Kontakt | direct@ui.com |
