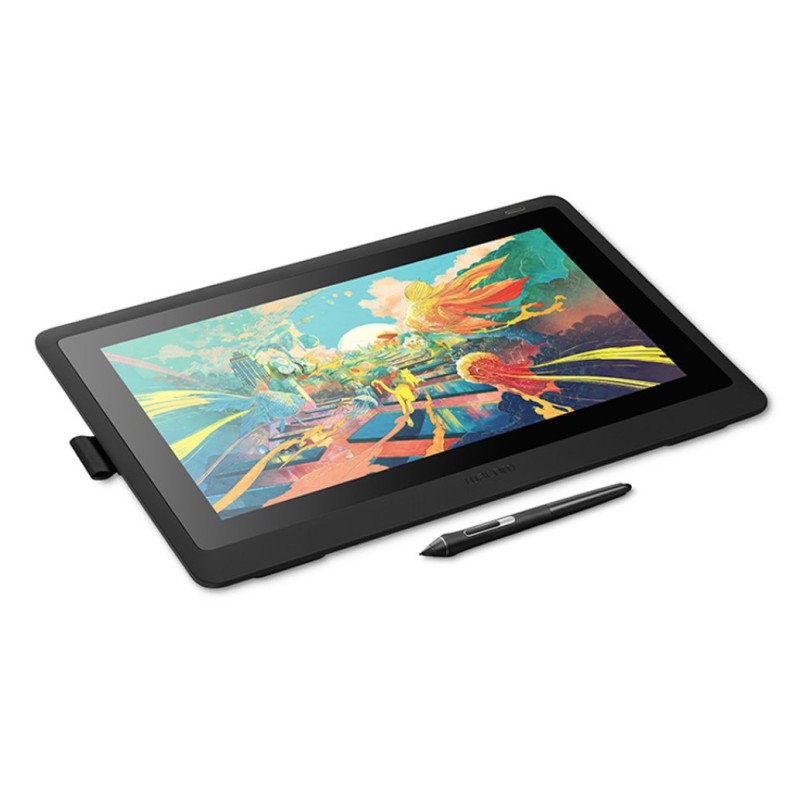

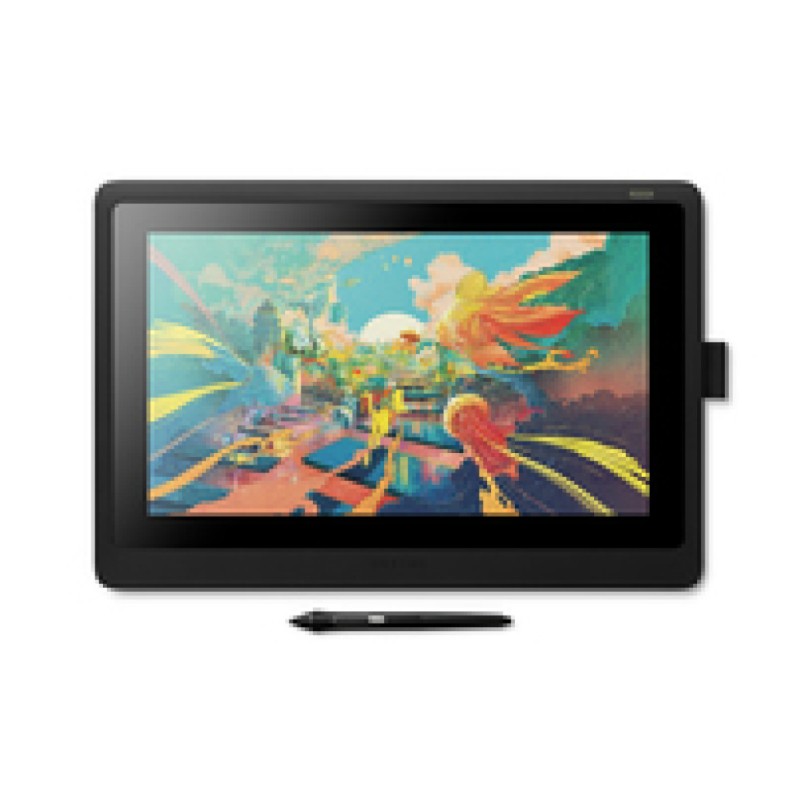

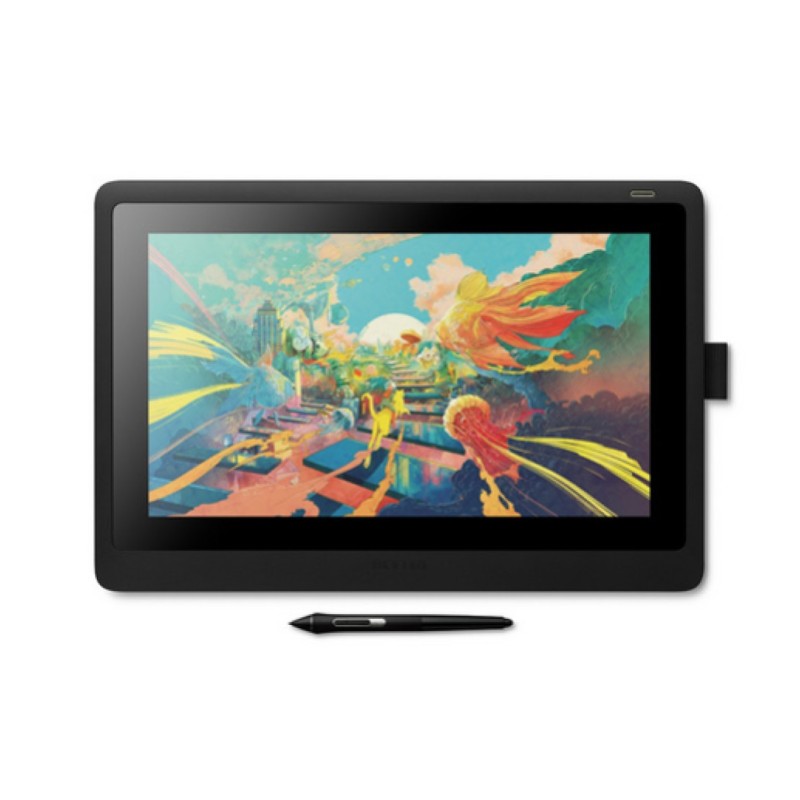

Grafični zaslon Wacom Cintiq 16 (DTK1660K0B)

Lastnosti:

• Vključuje Wacom Pro Pen 2, ki je na pritisk občutljivo, brezbaterijsko in brezžično pisalo z 8.192 nivoji površinske občutljivosti


• Pisalo pri vnosu praktično nima zamika in podpira nagib, na njem pa sta tudi 2 nastavljiva gumba


• Full HD ločljivost (1920 x 1080 px) 15,6" IPS LCD zaslona in žive barve (72% NTSC barvnega prostora) poskrbijo, da je na sliki vidna vsaka podrobnost


• Zaslon daje občutek pisanja po papirju in je nesvetleč


• Priključek na računalnik prek HDMI in USB-A kabla


• Cintiq 16 ima vgrajene zložljive nogice, ki omogočajo 19° nagib

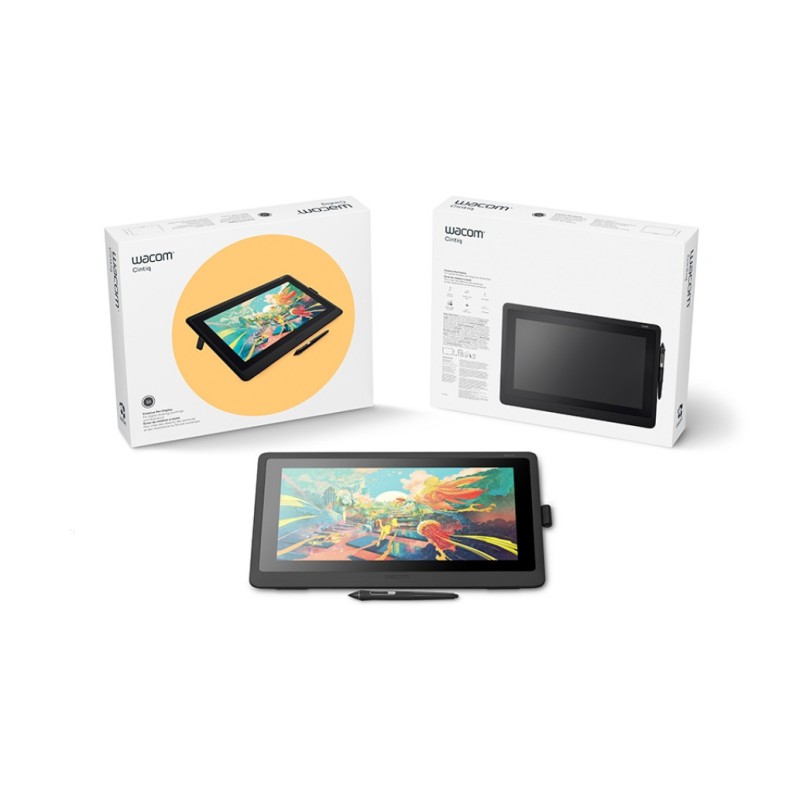

Paket vsebuje:

• Wacom Cintiq 16


• Wacom Pro Pen 2

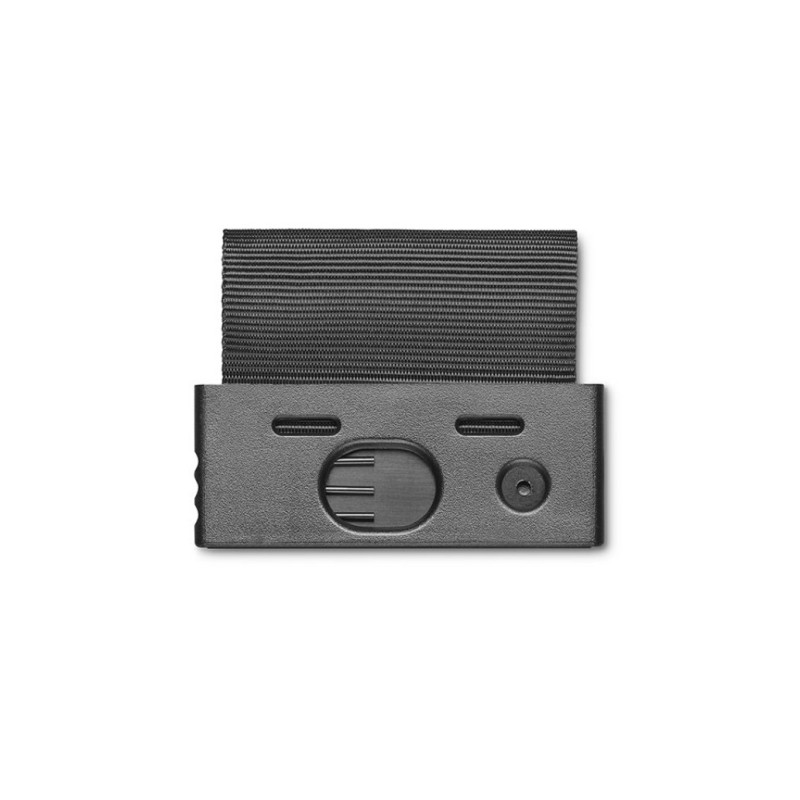

• Snemljivo držalo za pisalo s 3 rezervnimi konicami in orodjem za odstranjevanje konic


• 3-v-1 kabel (1,8 m)


• AC adapter (12V, 3A, 36W)


• Napajalni kabel (1,8 m)


• Dokumentacija

Vse specifikacije (v angleščini):

• Product Type: Creative Pen Display


• Model Number: DTK-1660


• Resolution: 1920 x 1080 (Full HD)


• Display Size: 422 x 285 x 24.5mm or 16.6 x 11.2 x 1.0 in


• Display weight: 1.9kg without optional stand


• Screen Size (Measured Diagonally): 15.6 inch or 39.6 cm


• Technology: a-Si Active Matrix TFT LCD (IPS)


• Displayable Colors (maximum): 16.7 million


• Aspect Ratio: 16:9


• Viewing Angle: 176/176 degree (typ) / 140/140 degree (min)


• Contrast Ratio: 1000:1 (typ) / 600:1(min)


• Luminance: 210 cd/m2 (typ) (including glass)


• White luminance (center): 180 cd/m2 (min)


• Response: 25 ms


• Active Area: 344.16 x 193.59mm or 13.6 x 7.6 in


• Color Gamut: 72% NTSC (CIE1931) typical


• Color Temperature/Custom Color: 9300K, 6500K, 5000K, Custom RGB


• Graphics Input: None


• Multi-touch: No


• Pen: Wacom Pro Pen 2


• Pressure Levels: 8192 levels (pen and eraser)


• Tilt Range: 60 degrees


• Tilt Recognition: +/- 60 levels


• Type: Pressure-sensitive, cordless, battery-free


• Switches: 2 side switches


• Pen Holder: Detachable Pen holder with 3 replacement nibs (standard) and nib removal tool


• Pen Stand: No


• Grip: Latex-free silicone rubber


• Technology: Patented electromagnetic resonance technology


• Resolution: 5080 lpi


• ExpressKeys: On optional ExpressKey Remote


• Touch Ring: On optional ExpressKey Remote


• Touch Strips: No


• Radial Menu: Yes


• Precision Mode: Yes


• Display Toggle: Yes


• Dedicated Pan, Scroll, Zoom, Brush Size: Yes


• Stand Adjustability: 19 degrees using built-in, fold-out legs


• Cables Included: 3 in 1 cable (with HDMI 1.4, USB 2.0 and AC adaptor)


• Power Cable (1.8m)


• PC and Mac Connection Requirements: HDMI port and standard USB-A port


• Ports included: 3-in-1 cable port only


• Audio: No


• Power Supply Input: 100 to 240 VAC, 50/60HZ


• Power Supply Output: 12 VDC, 3A (max)


• Power Consumption: Power ON mode (MAX) - 27 W; Power sleep mode - 0.5W or less(non-connection USB cable), Power OFF mode - 0.5 W or lower


• Battery: No


• Security: Kensington Lock Port (lock purchased separately)


• System Requirements: Windows 7 or later (latest service pack/build), OS X 10.12 or later (latest update); Internet access for driver download.
